| Material: | High quality low carbon steel wire |
| Feature: | Sturdy and sleek |
| Application: | Airports, ports, terminals security |

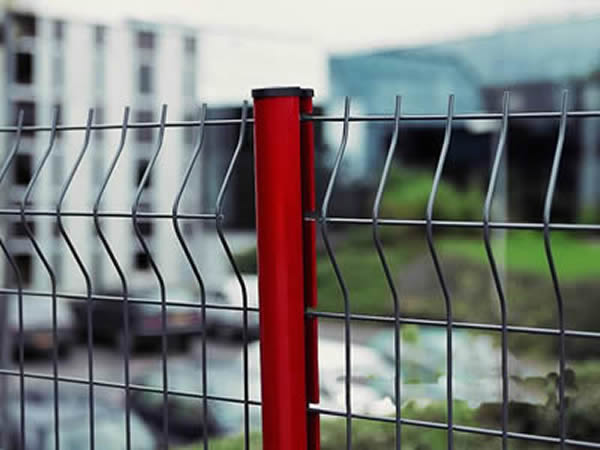

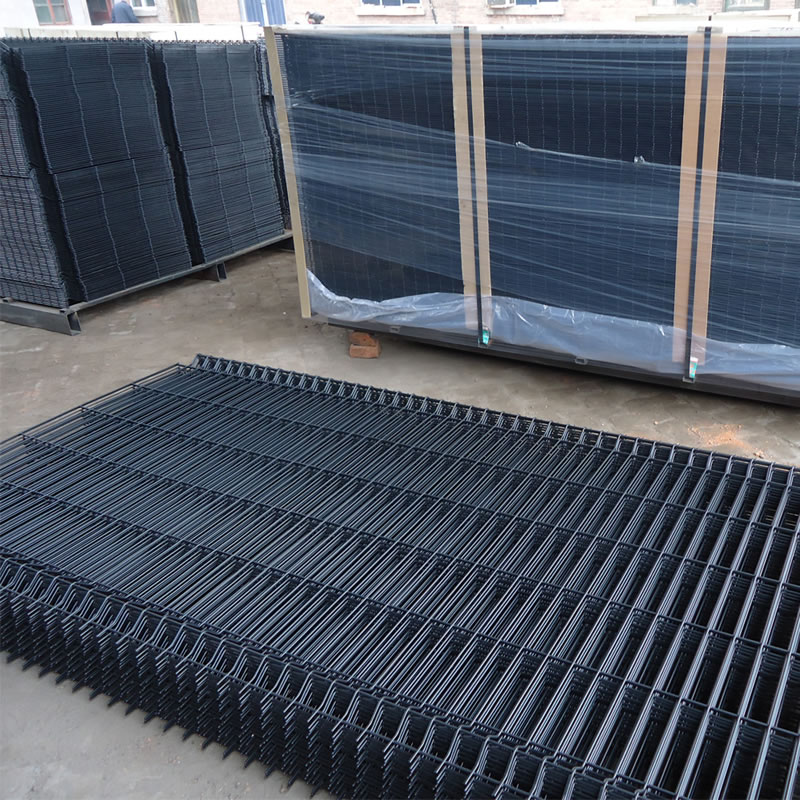

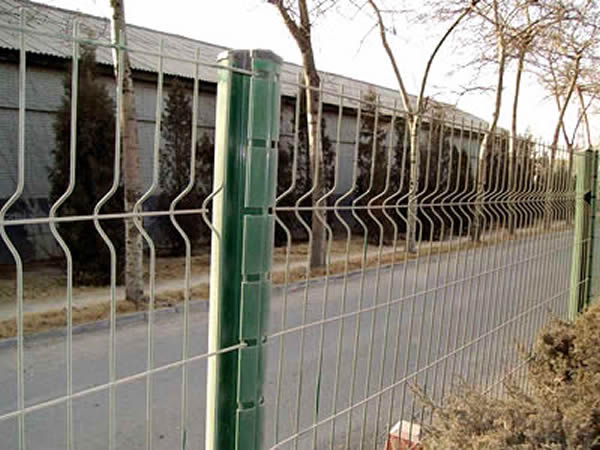

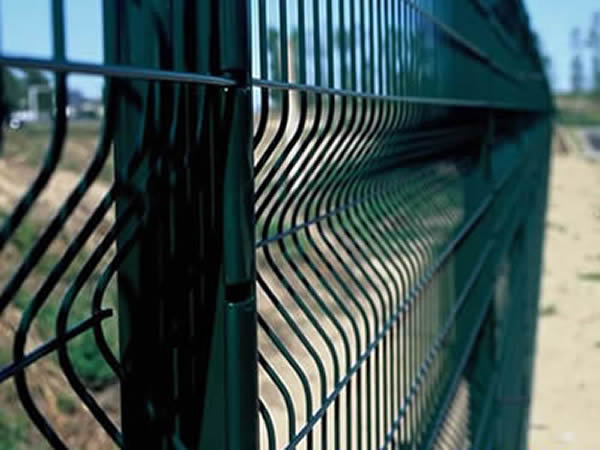

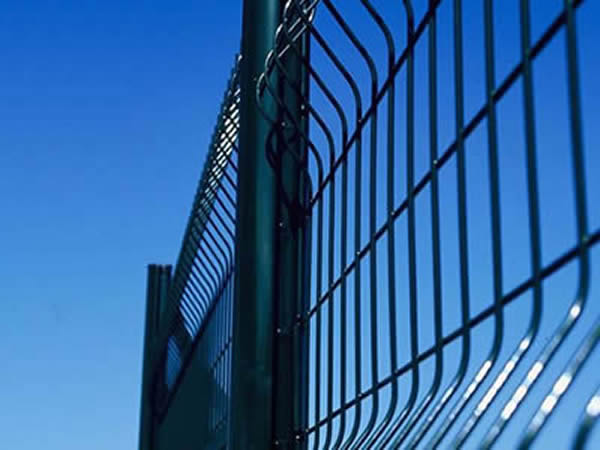

3D fence panel is a type of welded wire mesh. It is made of high quality low carbon steel wire, galvanized wire or stainless steel wire connected to metal posts. 3D fence panel has V-shaped bending curves, which look modern and attractive. The sturdy and sleek fence panel is mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.

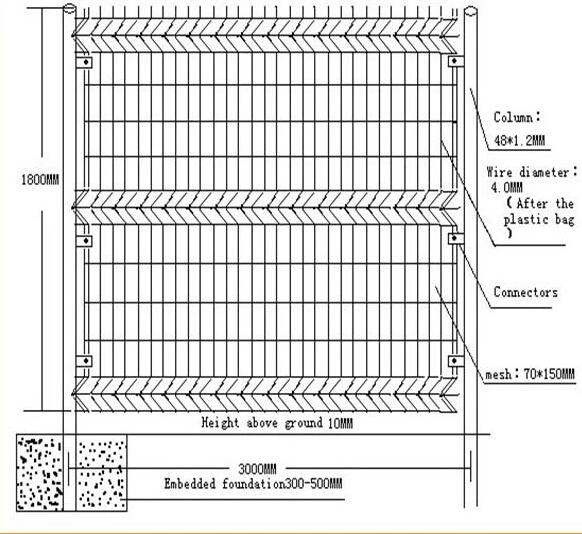

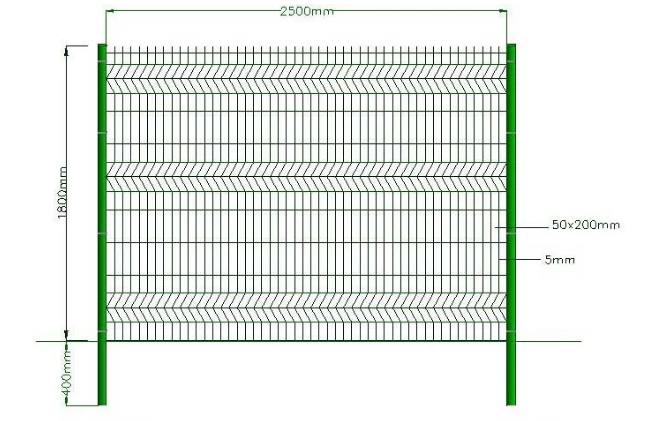

Common specification:
| Panel Height | Panel Width | Wire Dia. | Profiles | Mesh Size | Post Height | Post size |
| 630mm | 2500mm | 5mm | 2 | 200x50mm | 1100mm | 60x40x2mm |
| 1030mm | 2500mm | 5mm | 2 | 200x50mm | 1600mm | 60x40x2mm |
| 1530mm | 2500mm | 5mm | 3 | 200x50mm | 2100mm | 60x40x2mm |
| 1730mm | 2500mm | 5mm | 3 | 200x50mm | 2400mm | 60x40x2mm |
| 2030mm | 2500mm | 5mm | 4 | 200x50mm | 2600mm | 60x40x2mm |
| 2430mm | 2500mm | 5mm | 4 | 200x50mm | 3100mm | 60x40x2mm |

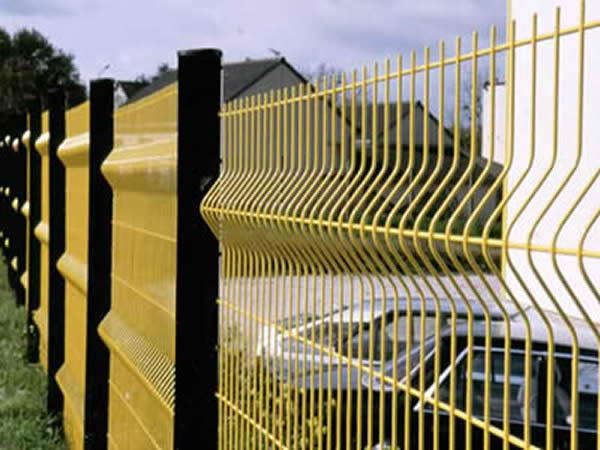

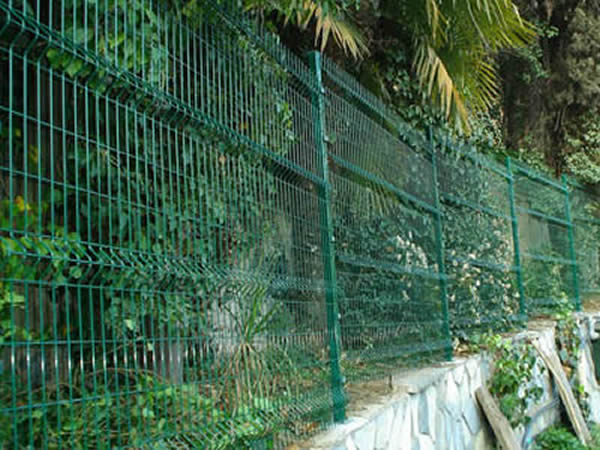

3D Curved Welded Wire Fence Applications:
• Mainly used in highway and railway bridge on both sides of the protection zone.
• Airports, ports, terminals security.
• Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
• Guest Houses, hotels, supermarkets and entertainment protective.

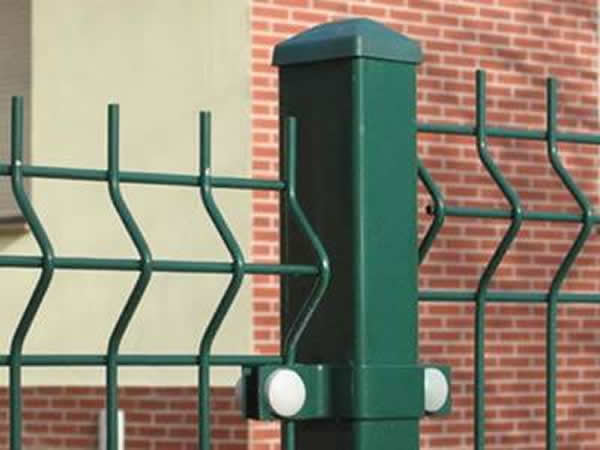

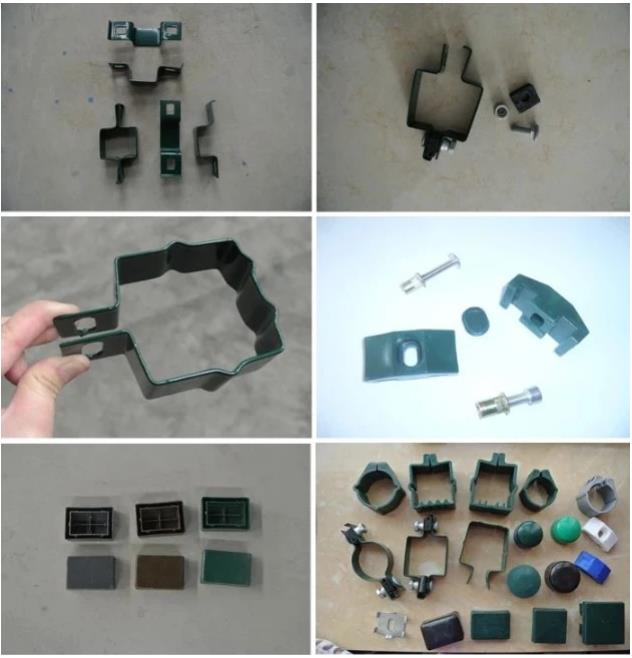

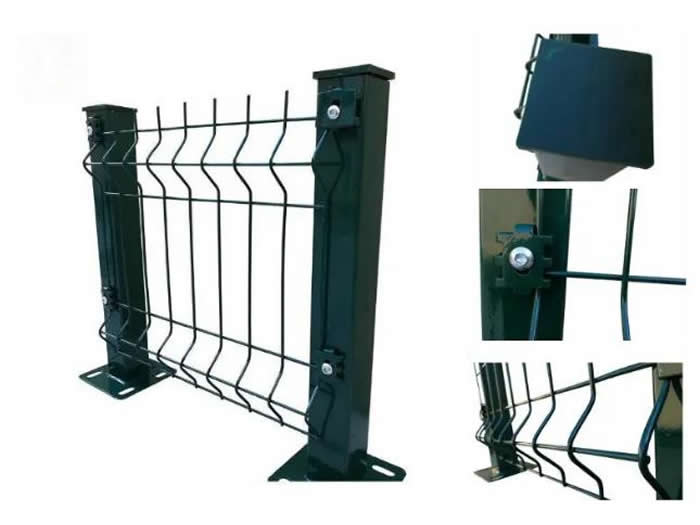

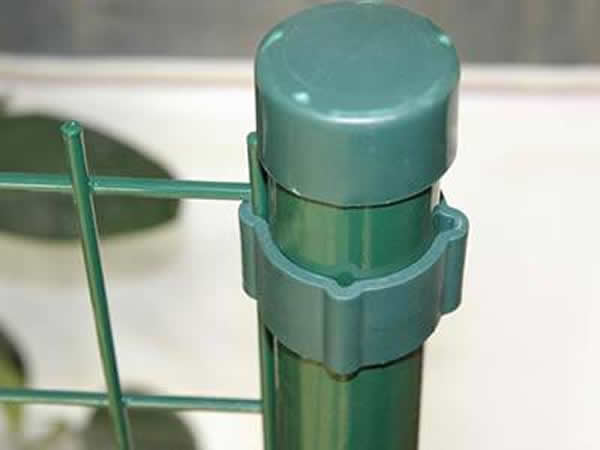

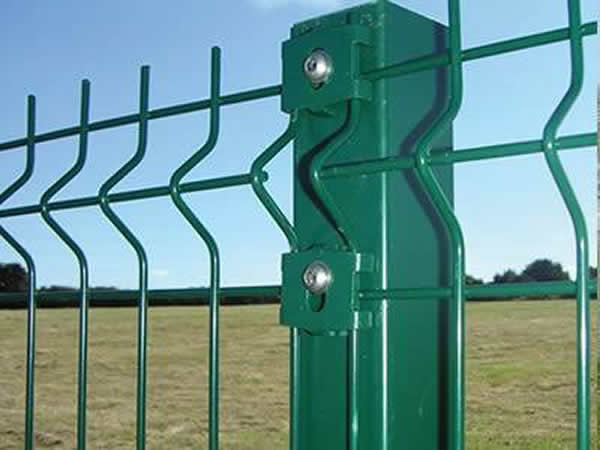

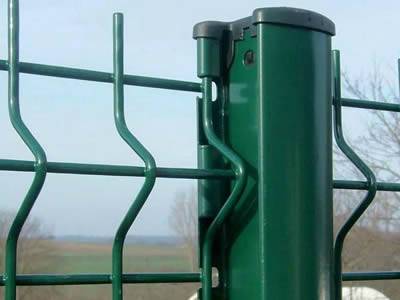

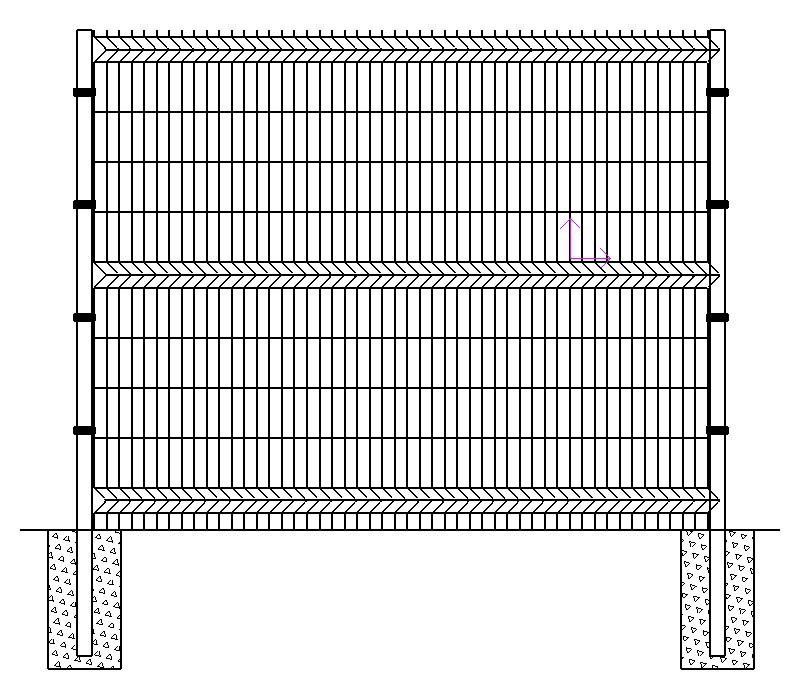

Post install of 3d curved mesh fence:
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.
