| Material: | Stainless steel 304,304l,316 |
| Feature: | Corrosion resistant |
| Application: | Anti-insect |

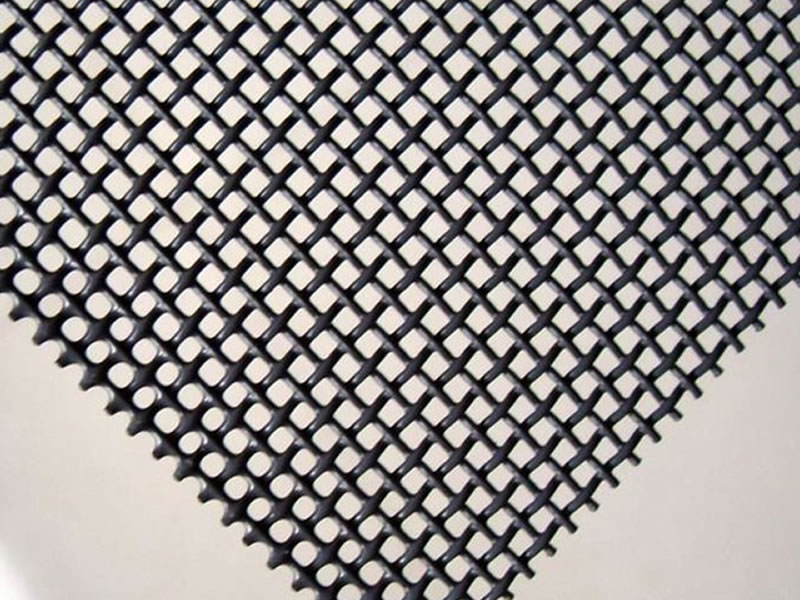

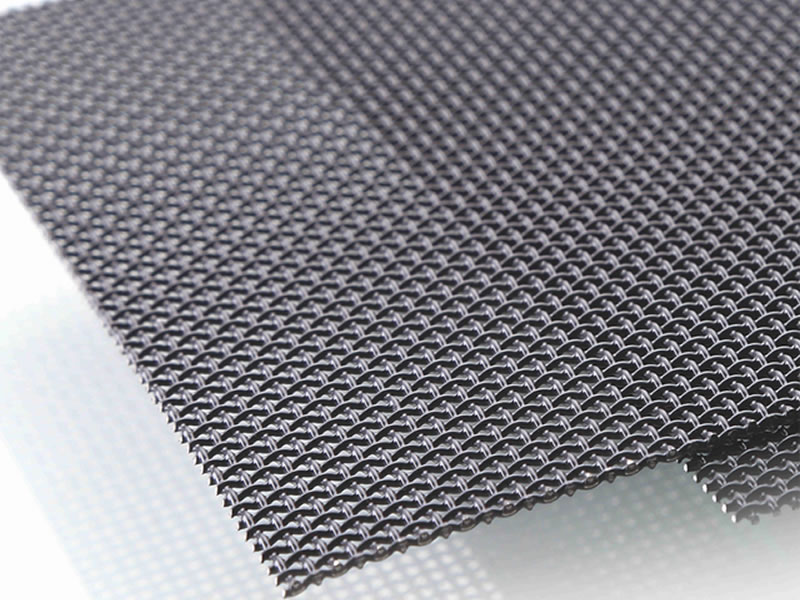

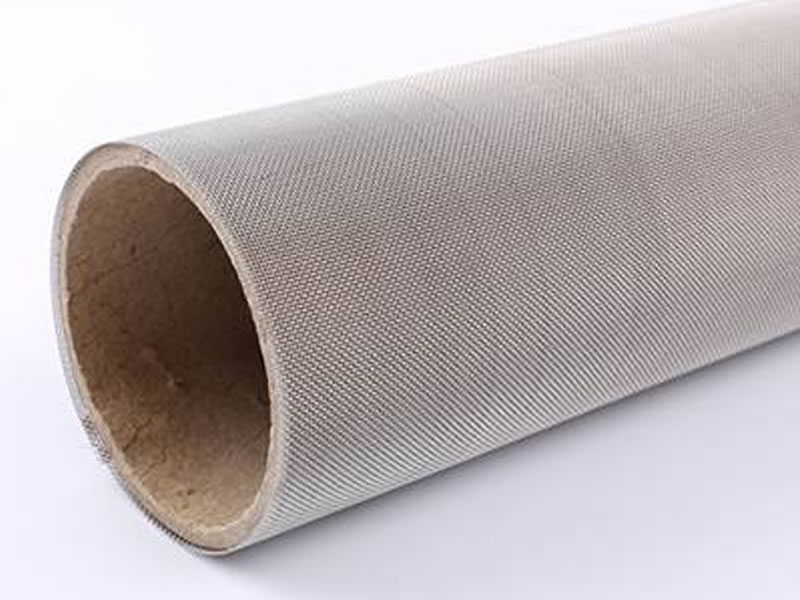

Stainless Steel Insect Screen is widely used in resident and various commercial buildings. The high quality stainless steel mesh is rust resistant, it is very fine and is designed for fly and insect control.

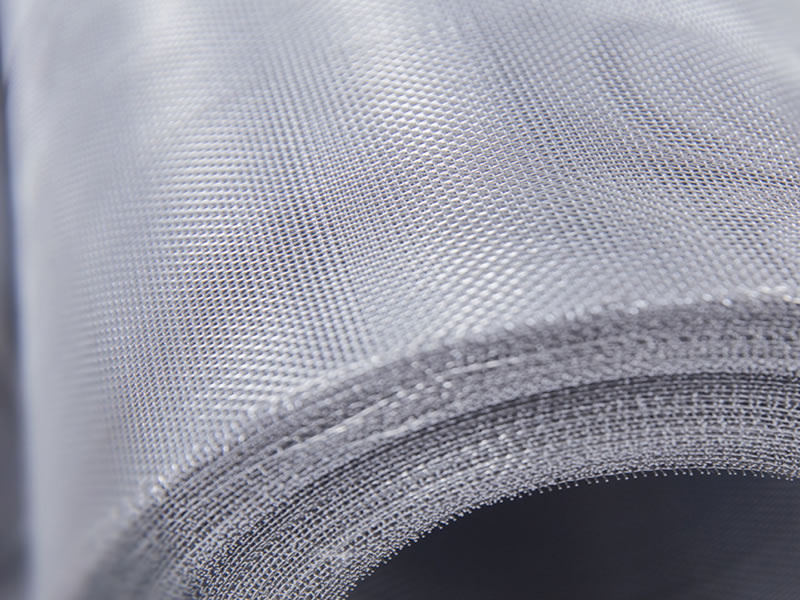

Stainless steel screen not only offers improved visibility with its fine wire diameter, it is even also more durable than standard insect screen. Uninterrupted visibility maximizes an outer view to make it look sharper and more brilliant. It permits excellent airflow and meets the great standard of insect protection. The stainless steel screen is fit for various screening applications including windows, doors and porches, it is also safe to use with pressure based lumber.
Material type: Stainless steel 304,304l,316,316l
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm, 900mm×2000mm, 1200mm×2000mm, 750mm×2400mm, 900mm×2400mm, 1200mm×2400mm, 1300mmx2600mm, 1500mmx2400mm.

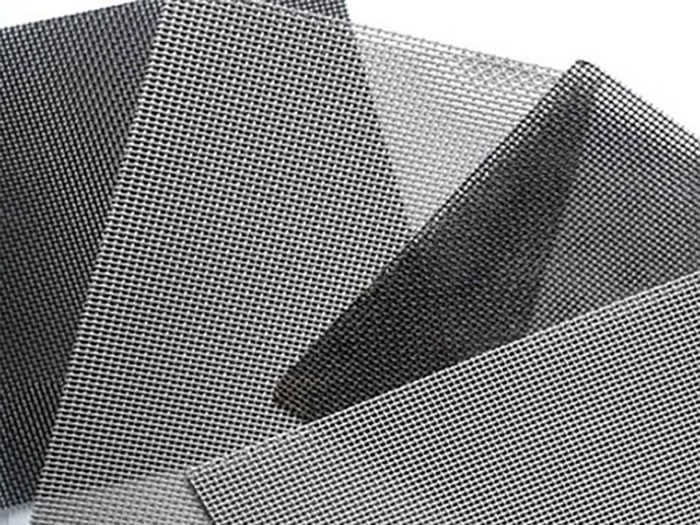

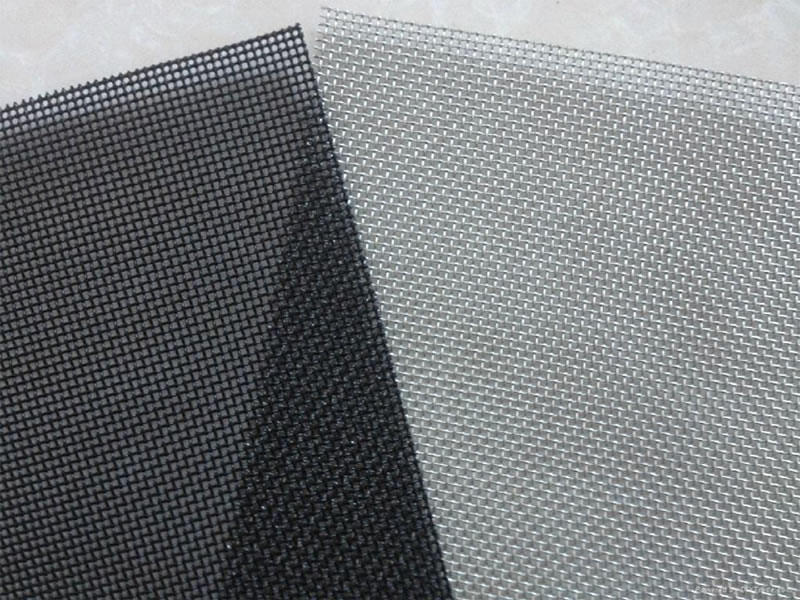

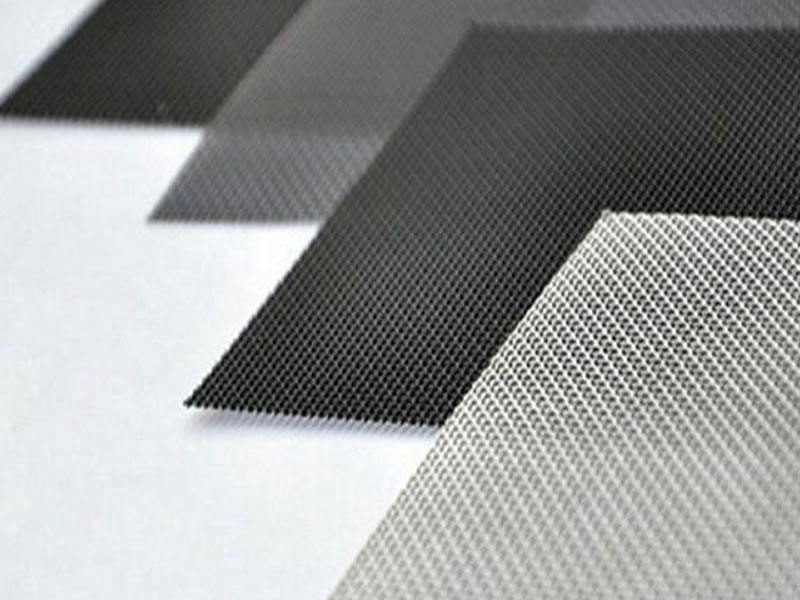

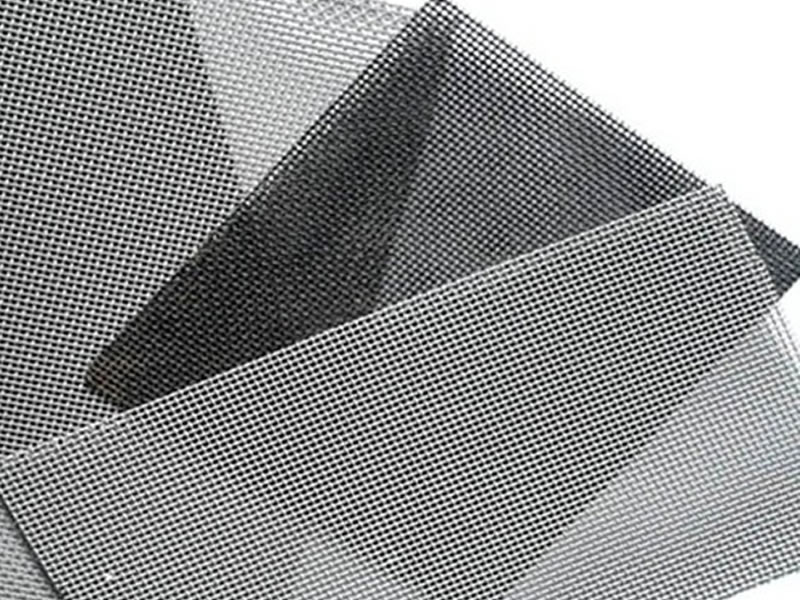

Color: black,white, gray, dark gray.
| Product | Stainless Steel Security Window Screen |
| Material | SS302, 304, 304L, 316, 316L, etc |
| Weaving Pattern | Plain Weaving; Twill Weaving; Dutch Weaving; etc |
| Wire Dia. | 0.18mm-1.2mm |
| Mesh Number | 11mesh-30mesh |
| Width | 0.6m-1.5m |
| Edge Processing | Closed Selvage; Flash; Perm Border |
| Color | White; Black; Green; Gray; etc |
| Characteristic | acid proof, alkali proof, high temperature resistant, wear-resisting |
| Application | 1. stall in window or door as window screen or mosquito 2. used in greenhouse as anti-insect or anti trip net 3. used in fishing breed or poultry rasing as pool or garden guard 4. uesd in agricutlure product for food drying |

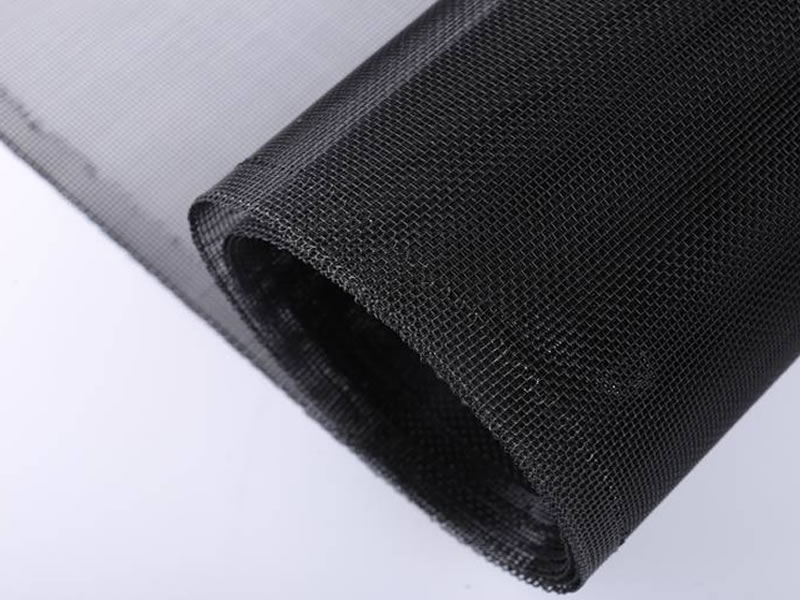

Light duty specification list
Product name | Specification | Introduction | ||
| Mesh/Inch | Wire diameter | Roll size (m) | ||

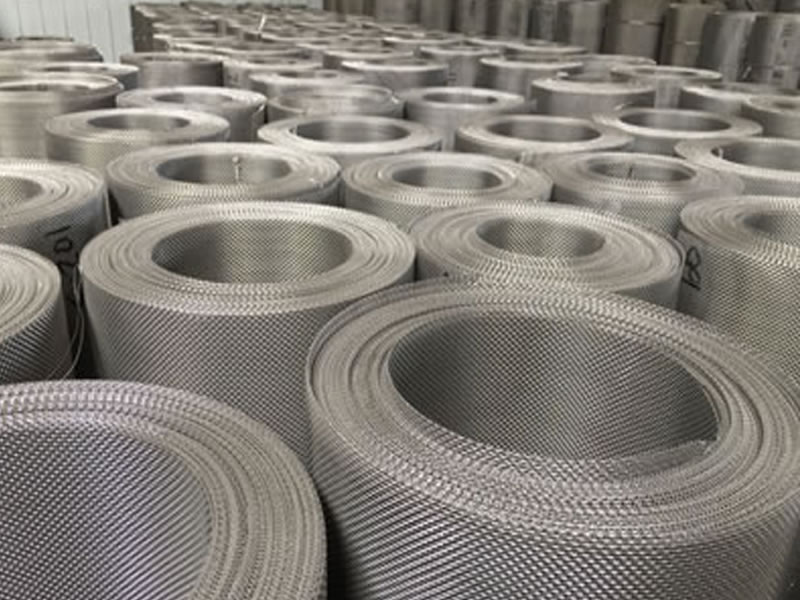

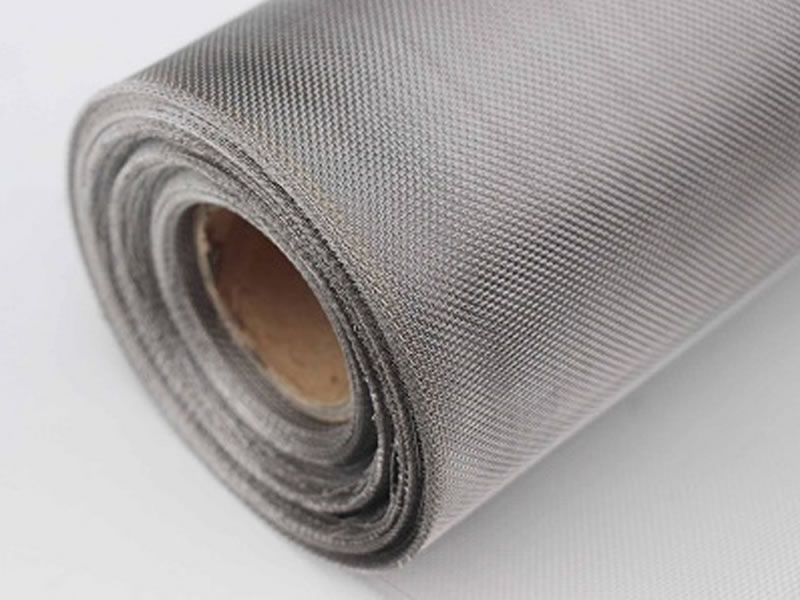

| Stainless Steel insect screen | 16 × 16 | 0.35mm | 0.6 x 30.5 0.9 x 30.5 1.2 x 30.5 | Material: ss304, ss316 |
| 18 × 18 | 0.23mm | |||
| 18 × 14 | 0.28mm | |||
| 20 × 20 | 0.18mm | |||
| 24 x 24 | 0.22mm | |||

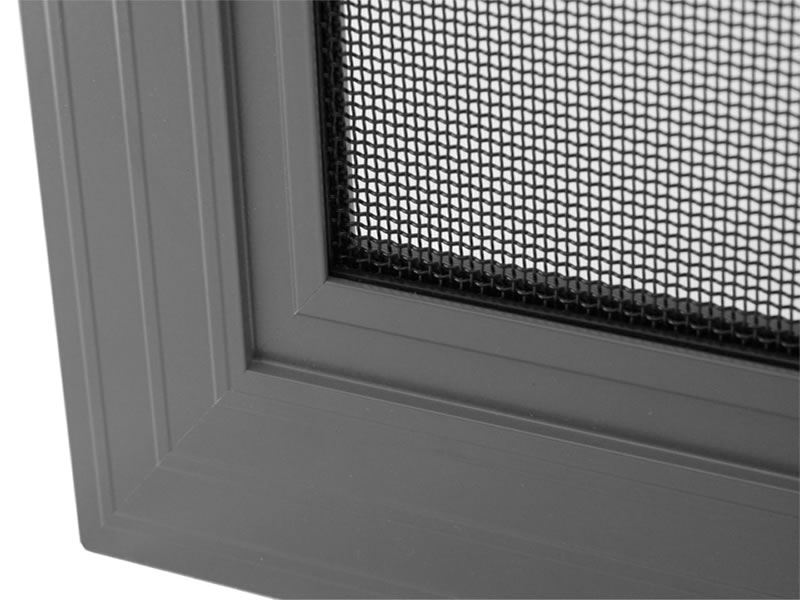

For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.
Heavy duty specification list
Product name | Specification | Introduction | ||
| Mesh/Inch | Wire diameter | Panel size (mm) | ||
| Stainless steel fly screen mesh | 10 × 10 | 0.9mm | 1500 x 2500 1300 x 2600 1200 x 2000 1200 x 2400 1000 x 2400 | Material: T 304, T 316 |
| 11 × 11 | 0.8mm | |||
| 12 × 12 | 0.7mm | |||
1. Customized sizes can also be supplied
2. 316 marine grade stainless steel
3. Corrosion resistant and ideal for bushfire-prone or coastal areas
4. Black powder coated to minimize glare and has excellent visibility
5. Ember protection
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.
