| Material: | High Quality Low Carbon Steel |
| Feature: | Beautiful and affordable |
| Application: | Lawns, Swimming pools, Homes |
Tubular Fencing Systems with Fence and Gate Supplies, ensures that you and your property are safe. Most importantly, whether it's for security, safety, property enhancement, wind break, noise reduction, privacy or to define a boundary, our team at Fence and Gate Supplies can also advise you on the best materials for your fencing requirements.
Even more, your Tubular Fencing System can be completed with a powder coated finish with over 150 colours to choose from. Therefore, when we install your powder coated Steel Tubular Fencing System, you can be rest assured that there is no risk of intrusion in your property. All our quality fencing materials will protect your property and also, at the same time, make it look good. This type of Fencing System can also improve the appearance and increase the value of your property.
Tubular Fencing Systems can be used for front lawns, swimming pools, homes, offices, schools, factories, etc. A huge variety of fence and gate designs are also available in our Tubular Fencing range which can suit your budget. Furthermore, we can also custom make fencing to ensure we meet your needs and standards. Also, all Fence and Gate Supplies fencing systems comply with the particularly high Australian Standards.
Tubular Fencing Systems – A beautiful and also an affordable solution. It’s the ultimate combination of strength, beauty, and also durability.

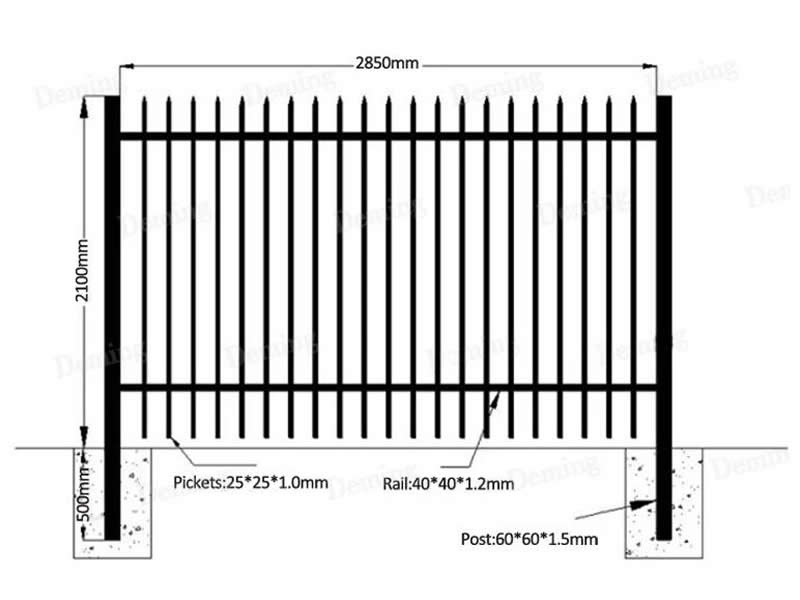

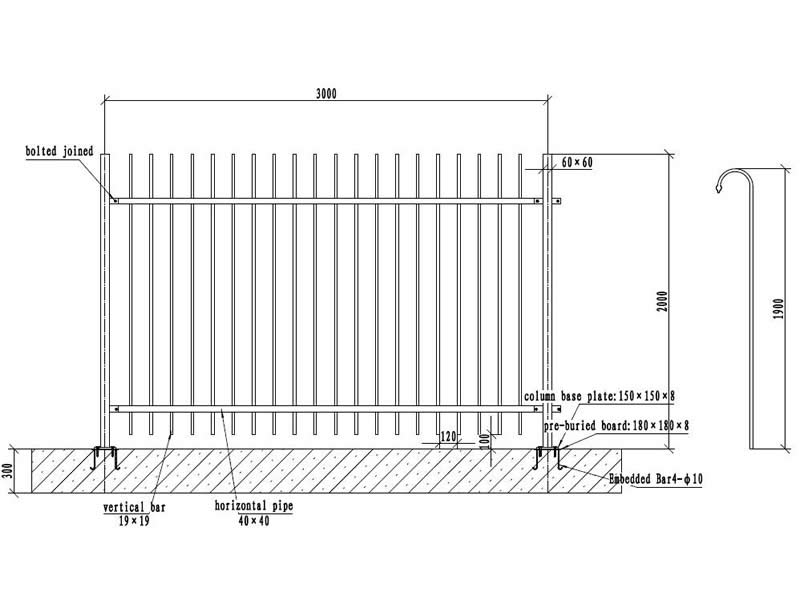

Specification:
Pale head: Flat top. Horizontal rail as top. Pale welded face on rail.
| Panel size | Pale:19×19,25×25 | Rails | Post | |||
| Fence height(mm) | Fence width(mm) | Pale Thickness(mm) | Qty:Pale (pcs) | Cross Rails (mm) | Height (mm) | Square Post Section(mm) |
| 1800 | 2400 | 1.6 | 18 | 40×40×1.6/2.5 | 2700 | 65×65 ×3.0 |
| 2100 | 2400 | 1.6 | 18 | 40×40×1.6/2.5 | 3000 | 65×65 ×3.0 |
| 2400 | 2400 | 1.6 | 18 | 40×40×1.6/2.5 | 3300 | 65×65 ×3.0 |
| 2700 | 2100 | 1.6 | 15 | 40×40×1.6/2.5 | 3600 | 75×75 ×3.0 |
| 3.0m | 2.75m | 1.6 | 17 | 40×40×1.6/2.5 | 3900 | 75×75 ×3.0 |
Pale punched through rail
| Panel size | Pale: 25*25 | Rails | Post | |||
| Fence height(mm) | Fence width(mm) | Pale Thickness(mm) | Qty:Pale (pcs) | Cross Rails (mm) | Height (mm) | Square Post Section(mm) |
| 1800 | 2400 | 1.2 | 18 | 40×40×1.6 | 2700 | 65×65 ×2.0 |
| 2100 | 2400 | 1.2 | 18 | 40×40×1.6 | 3000 | 65×65 ×2.0 |
| 2400 | 2400 | 1.2 | 18 | 40×40×1.6 | 3300 | 65×65 ×2.0 |
| 2700 | 2100 | 1.2 | 15 | 40×40×1.6 | 3600 | 65×65 ×2.0 |
Pale use galvanized mild steel tube
Horizontal rails: Standard 40×40×2.5 or 40×40×1.6 mm steel tube
Post use (60×60*2.0mm, 60×60×2.0mm, 75×75×3.0mm, 80×80×3.0mm)
Fixings: steel brackets or aluminum brackets.
Surface: Fence can use pre hot dipped galvanized tube fabricate and after several clear procedure. We use famous international powder (AkzoNobel) sprayed.In that case can got strongly resist the corrosive and ultraviolet radiation. Double coating layer high quality anti corrupt. The longevity will 10 years long.
